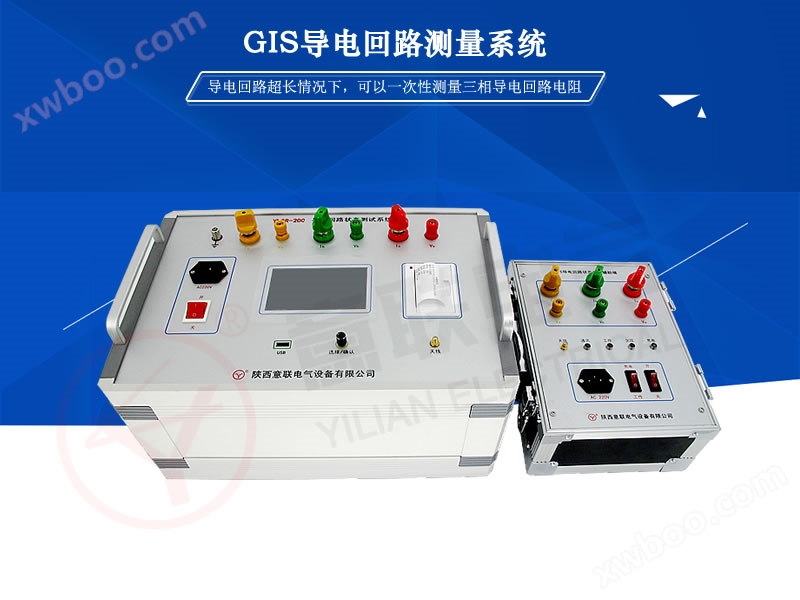

GIS Conductive Circuit Measurement SystemBy using wireless communication between the main measuring device and the auxiliary measuring device, it is easy to measure the resistance value of the conductive circuit of various large switchgear in single-phase or three-phase simultaneously. Especially for GIS equipment with a large interval between conductive circuits and extremely long conductive circuits, the three-phase conductive circuit resistance can be measured at once, avoiding segmented measurement of resistance values and causing measurement errors in the total resistance of the conductive circuit. The measurement is accurate, easy to operate, and saves time.

▍ Product functions and features 　↴

The system adopts the DC voltage drop method specified in relevant standards and uses a test current of 200A, which meets the relevant requirements of standards such as GB50150-2006. The system has the following functions:
• Simultaneous measurement of three-phase or single-phase measurement of circuit resistance in switchgear
Measurement of full resistance of all interval conductive circuits of GIS equipment
GIS equipment single-phase or three-phase conductive circuit resistance measurement
The product consists of two parts: the main measurement end and the auxiliary measurement end, and operates using low-power wireless communication
Using three-phase simultaneous measurement technology to measure the resistance of ultra long switch conductive circuits
Measuring the resistance of conductive circuits in GIS equipment is easy and convenient
Compare the curve display of historical data for the same device
Both the main measurement end and the auxiliary measurement end use imported high-speed A/D sampling chips, which have high measurement accuracy
The equipment is assembled with a high-strength aluminum alloy sandblasting chassis and comes with a shockproof outer box for storage, ensuring safety and reliability

▍ Product Technical Parameters 　↴

• Measurement range: three-phase 10 μ Ω -2m Ω single-phase 10 μ Ω -20m Ω
• Measuring current: 100A/200A
Maximum output voltage: DC 10V
• Measurement accuracy: 10 μ Ω -2m Ω ≤ 0.5% 2m Ω -20m Ω ≤ 1%
• Highest resolution: 0.1 μ Ω
• Display mode: 800 × 480 (5-inch) high-definition LCD display screen
Measurement time setting range: three-phase 110s, single-phase 10-30s
• Data output: USB flash drive
• Print output: using a thermal micro printer
Real time temperature and humidity detection function: temperature -10 ° C -50 ° C humidity 20% -95%
• Storage system: Stores 999 records
• Communication: Wireless point-to-point communication, maximum distance of 3km
Main measuring end: dimensions 445 × 310 × 250 (mm), weight 10Kg
• Auxiliary measuring end: Size 275 × 205 × 155 (mm) Weight 3Kg
• Working power supply: main measuring end AC220V, 50Hz, auxiliary measuring end DC24V, built-in lithium battery power supply
Attachment box: Size 555 × 415 × 270 (mm) Weight 20Kg (including accessories)
