HisometDH IIHigh precision 3D tool microscope
X. Y, Z three-axis precision measurement, Z-axis measurement accuracy can reach ± 1 μ m optical non-contact type, which can avoid damaging the measured object. According to customer requirements, provide measurement software and other accessories.
characteristic:
Z-axis measurement with ultra-high accuracy of ± 1 μ m.

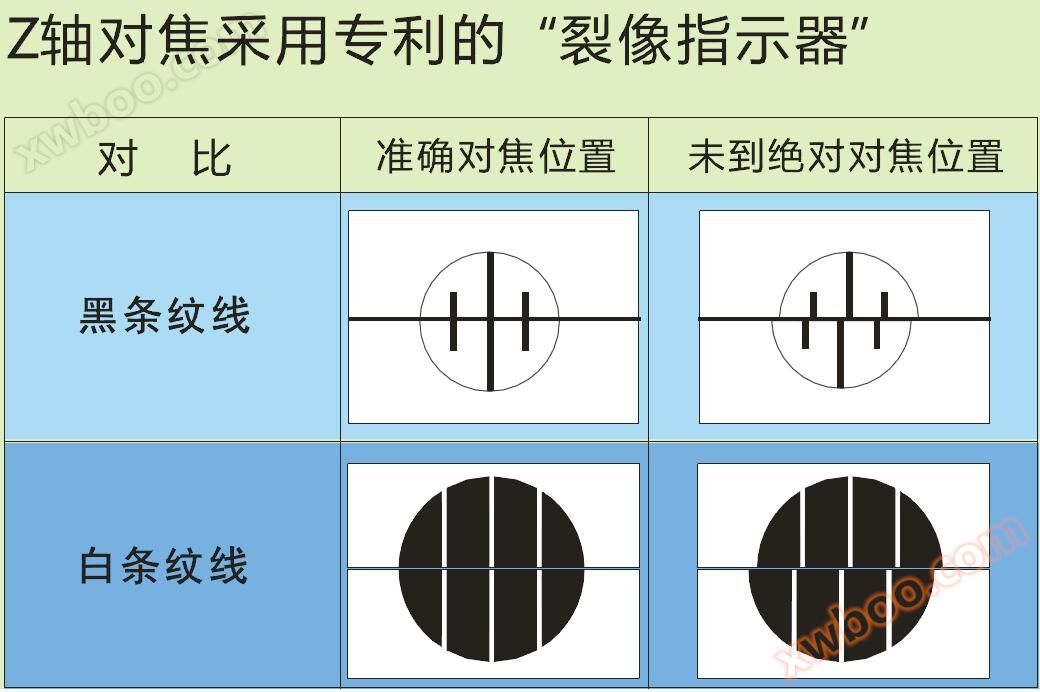

Z-axis optical assisted focusing symbol reduces human eye error.
Two different focus symbols that can be switched freely.
Application scope:
The IC packaging industry, mechanical industry, academic research institutions, and other industries require high-precision three-dimensional measurement of the test object (Sample)
Technical parameters:

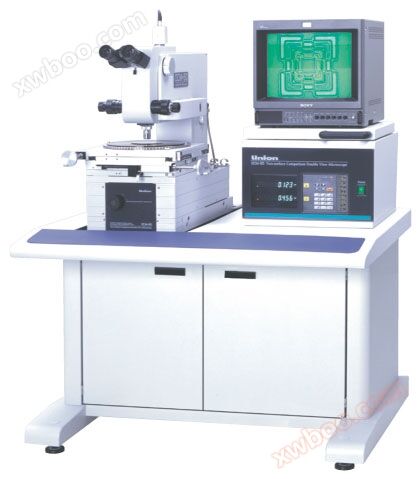

UNION DCM double-sided alignment measurementFixed microscope
characteristic:
The DCM series features a unique upper and lower dual lens design, which is a non-contact optical measuring instrument developed for double-sided alignment measurement.
DCM can be viewed separately from the front, back, and double-sided images through an eyepiece (or display).
Paired with a precise measurement platform, it can measure the X and Y axis data of the sample on both sides separately.
When displaying double-sided images, it can measure the alignment difference between the front and back sides with excellent accuracy.
The total magnification ranges from 50 times to 1000 times (the magnification of the upper and lower lenses must be the same).
UNION THS double-sided focusing thickness measurementMicroscope
Z-axis optical assisted focusing symbol provides operators with clear and accurate judgment basis, reducing human error and greatly improving accuracy.
Adopting a single point measurement with upper and lower lenses, there will be no measurement error caused by the sample bending.
The non-contact optical measurement method will not cause scratching or deformation of the sample to be measured.
The total magnification ranges from 50x to 2000x (the upper and lower lenses must be the same).
UNIONDZHigh magnification microscope
characteristic:
DZ-4 Zoom Ratio 12 (0.83-10 times)
Lightweight in size, with a maximum magnification of 4200 times
High-resolution image
Wide angle objective lens, large field of view, detection without blind spots
Coaxial LED lighting
UWZ SuperLong working distanceDoublingMicroscope
characteristic:
Ultra long workspace with no work obstacles.
It can observe and work simultaneously, and can also transmit images to a computer or other monitor, and install measurement software to perform multifunctional measurements such as point, line, circle, angle, etc.
The magnification is 30-420 times, and the longest working distance can reach 285mm.
Technical parameters:
