Product Overview of Linear Fully Automatic Vacuum Capping Machine:

The linear fully automatic vacuum capping machine adopts PLC electronic fiber optic sensing control and is designed with integrated mechanical and electrical components. The light sensing automatic positioning system can better locate bottles, avoiding bottle squeezing and breakage caused by bottle misalignment. At the same time, the mechanical equipment is equipped with a pre tightening structure to prevent bottle caps from falling off during operation.

Working principle of linear fully automatic vacuum capping machine

Firstly, store the bottle cap in the feeding hopper and transport it to the capping port through a variable frequency lifting belt. The capping function is achieved by two synchronous belts and three sets of six locking wheels, and the mechanical torque adjustment function is used to ensure that the capping is just right.

Technical parameters of linear fully automatic vacuum capping machine

Bottle cap Ø 15~Ø 70mm

Bottle diameter Ø 20~Ø 100 mm

Suitable for bottle height of 30-120 mm

Gas consumption 300 L/min

Maximum speed of 130 bottles per minute

Power supply AC 220 V, 50 Hz

Air pressure 0.5~0.7Mpa

Total power 1.25 kW

Dimensions (L × W × H) 2430 mm × 900 mm × 2141 mm

Weight 750 kg

Highlights of Linear Fully Automatic Vacuum Capping Machine:

1. The linear fully automatic vacuum capping machine is equipped with a PLC color display screen, which displays the real-time working status of the equipment and simulates output data for easy statistical work.

2. The precise dragon bottle separation mechanism and stopper system ensure accurate bottle positioning and guarantee the capping effect of the chili sauce tinplate vacuum capping machine.

3. This device adopts a downward pressure vacuum screw cap instead of the traditional top screw cap, overcoming the occurrence of traditional bottle breakage and bottle cap damage.

4. The effect of vacuum capping is better for glass bottles with liquid materials or materials that are prone to scattering, overcoming the risk of material leakage caused by centrifugal force of dial type capping.

5. The linear fully automatic vacuum capping machine adopts a linear bottle feeding method, which makes the bottle movement smoother and has a higher success rate compared to other capping machines.

6. The company has launched multi head linear vacuum screw caps such as 4 and 6 to meet the production needs of customers in response to market demand.

7. The equipment configuration is flexible and can be equipped with an automatic hanging cover machine. The whole machine is made of 304 stainless steel and has a beautiful appearance.

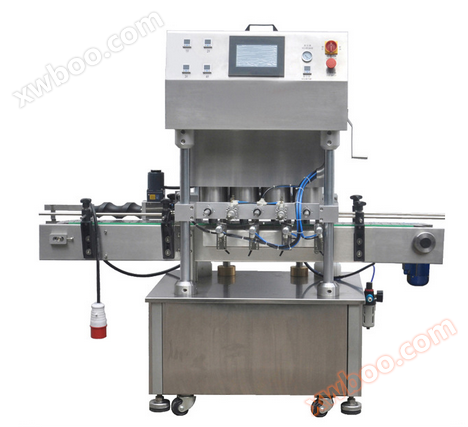

Real time photo of linear fully automatic vacuum capping machine product
