ROBOPAC, Italy

Fully automatic winding packaging machine

TECHNOPLAT 3000

Technoplat3000 is a high-performance fully automated packaging station located at the end of the production line in the packaging field. The design, material selection, and debugging software of this packaging machine on the production line all comply with strict quality and safety standards.

The durability and reliability of the rotating components of the relative motion mechanism, which combines monitoring and control with a rigid structure, ensures great efficiency and service life even under harsh working conditions. Technolat 3000 is the answer given by Robomo to all industrial requirements

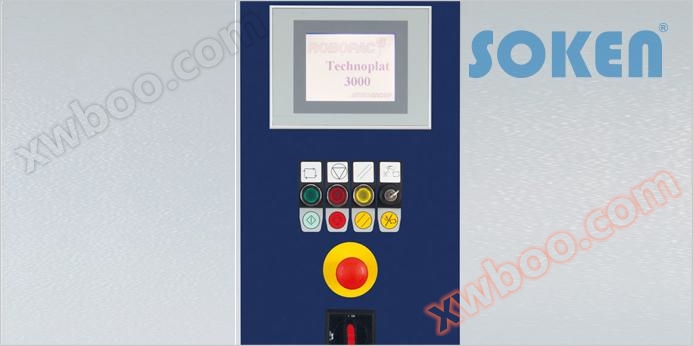

Touch screen control panel

ESA monochrome touch screen operation panel

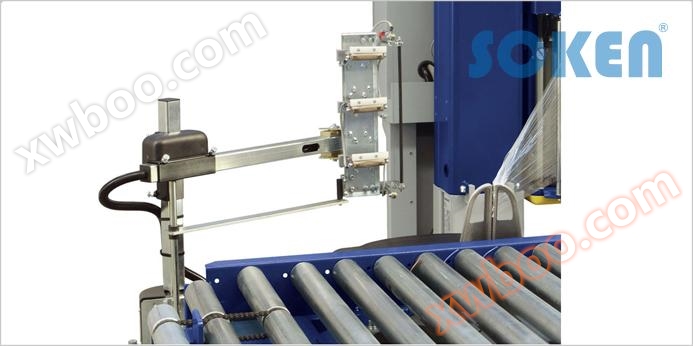

Film breaking and clamping system with heat sealing

TECNOPLAT3000 is equipped with automatic fixtures, cutting, and welding systems. The welding machine has two vertical resistors and two horizontal resistors.
It ensures that the packaging film is perfectly attached to the product at the end of packaging, achieving good adhesion with the pallet. The inclined clamping device ensures the correct release of the packaging film.

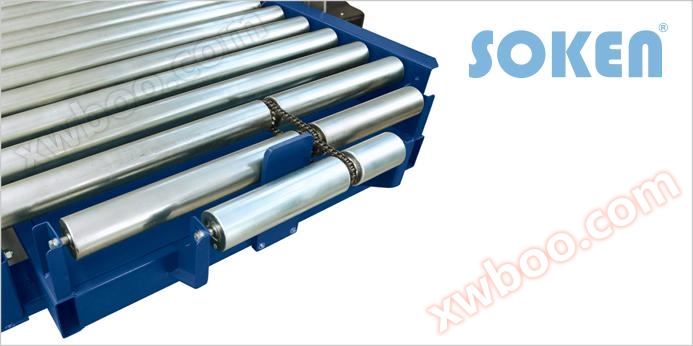

Rotating table base

The standard model rotating platform is equipped with high-strength galvanized steel rollers, and the maximum speed driven by the motor is 15 meters per minute.
The diameter of the roller is 76 millimeters, the effective length is 1100 millimeters, and the center to center distance is 120 millimeters.
The roller is driven by a transmission chain.
In addition, there is a blowing system used to remove the first section of packaging film, making the packaging of all products uniform.
