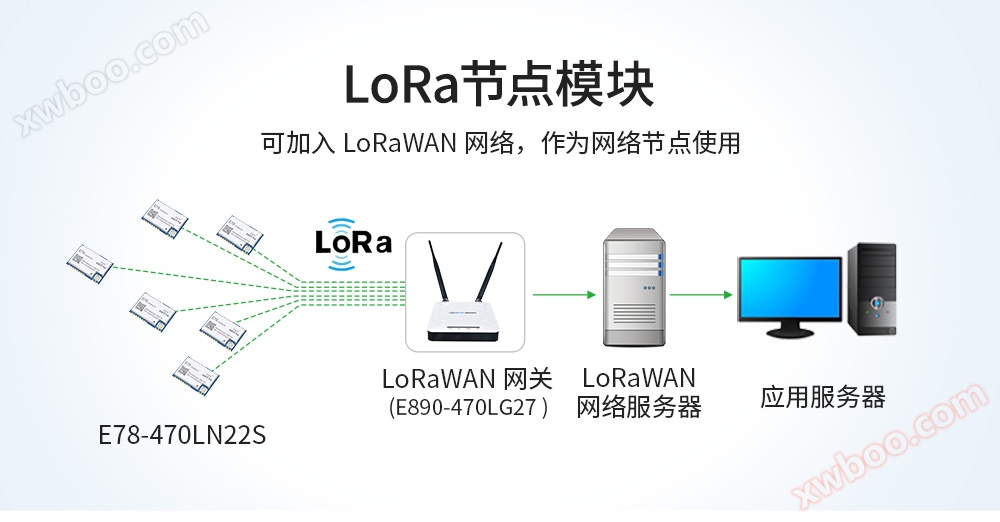

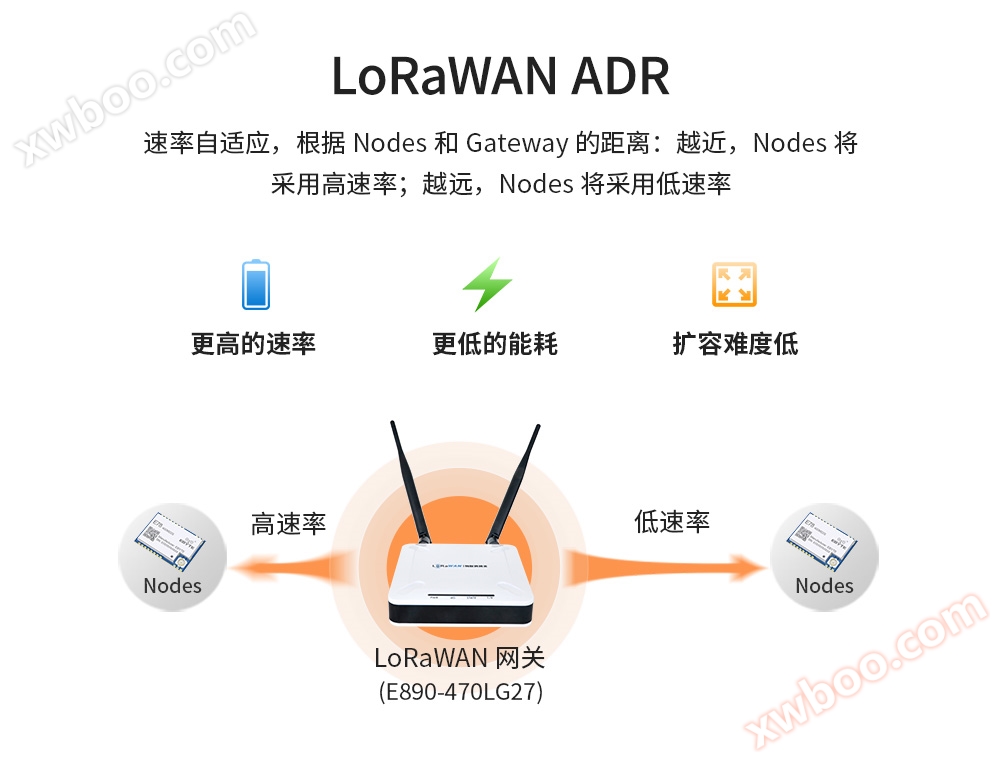

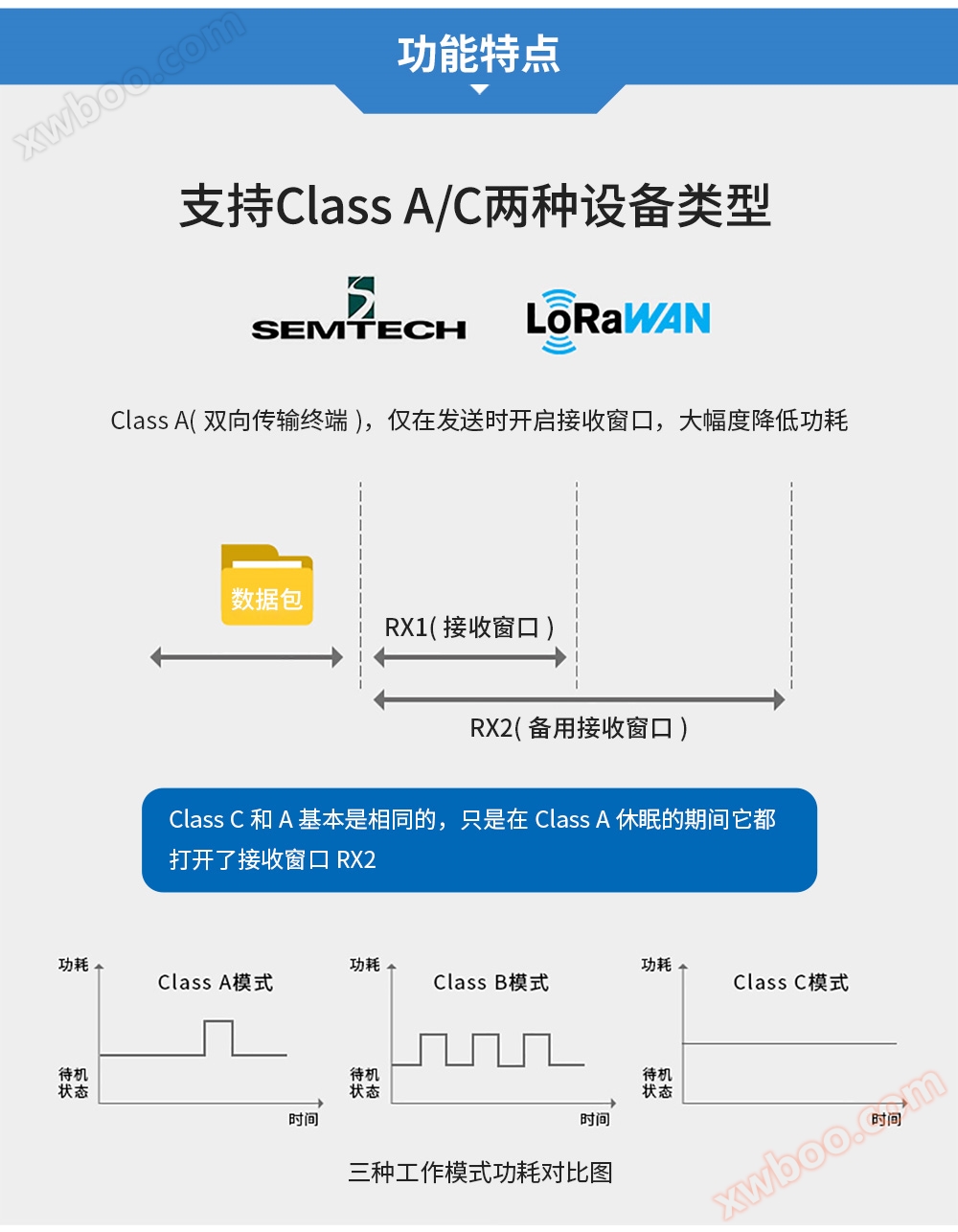

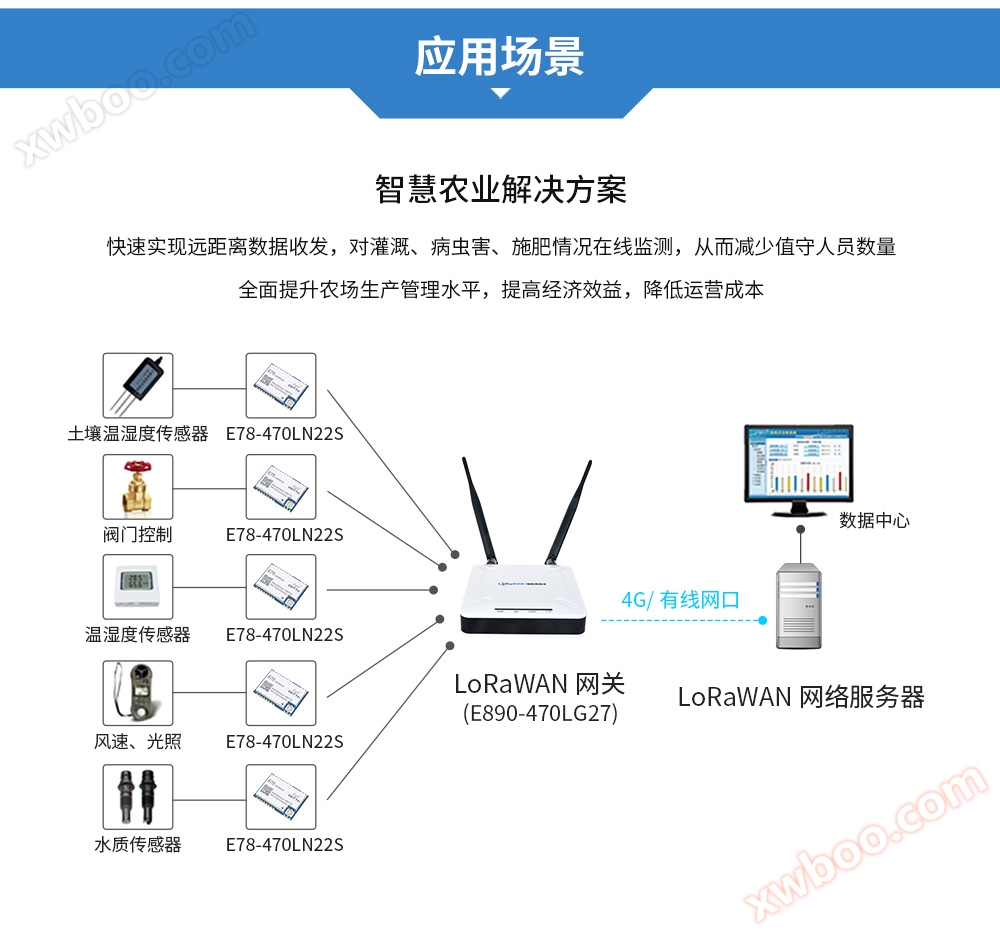

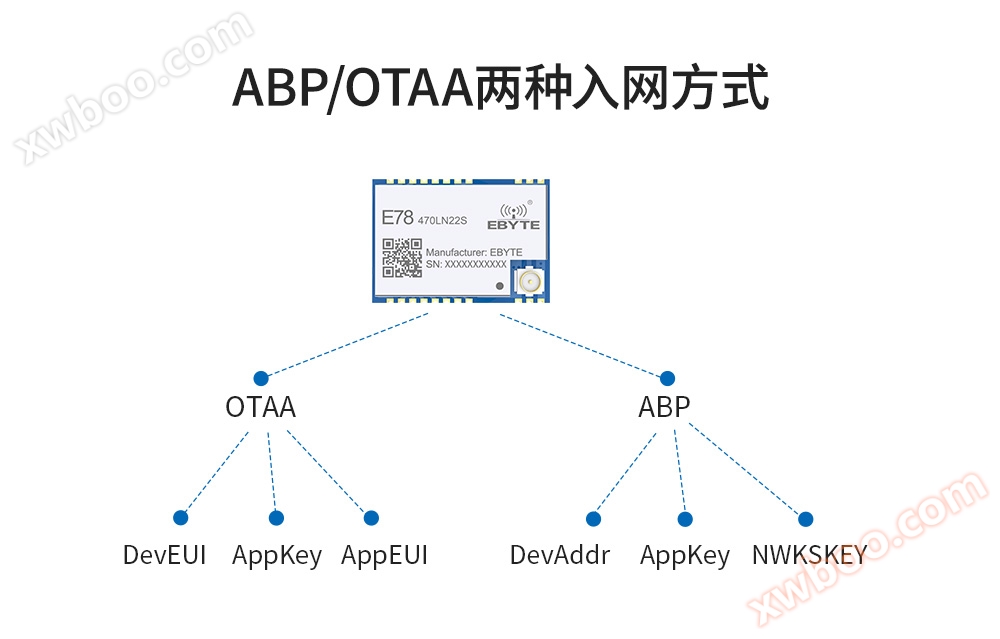

Product details
| Main parameters | Parameter values |
Remarks |
| operating frequency band |
CN470~510MHZ | - |
| Core IC | ASR6501 |
- |

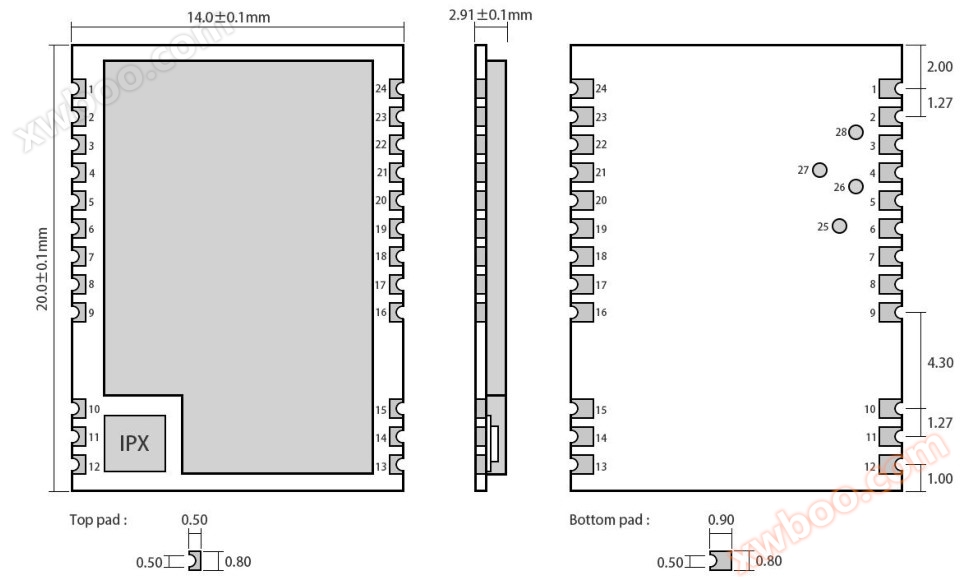

| Product dimensions | 20*14*2.91 mm |
- |
| Net weight of module |
1.3±0.1g | - |
| Operating Temperature | -40 ~ 85℃ | - |
| Operating Humidity |
10% ~ 90% |
- |
| Storage temperature | -40 ~ 125°C | - |
| serial number |
pin | Pin direction |
Pin usage |
| 1 | GND | - | Ground wire, connected to the power reference ground |
| 2 | VCC |
- |
Power supply, range 2.5-3.7V (it is recommended to add ceramic filter capacitors externally) |
| 3 | SETB |
input/output |
Ground wire, connected to the power reference ground |
| 4 | DIO1 |
input/output |
Multi purpose digital IO, cannot be used as external GPIO |
| 5 | BUSY |
input/output |
SPI busy indication, cannot be used as external GPIO |
| 6 | I2C_SDA |
input/output |
I2C SCL pin |
| 7 | I2C_SCL |
input/output |
I2C SDA pin |
| 8 | UART_CTS |
input/output |
UART CTS pin |
| 9 | UART_RTS |
input/output |
UART RTS pin |
| 10 | GND | - | Ground wire, connected to the power reference ground |
| 11 | ANT |
- | Antenna interface, stamp hole (50 ohm characteristic impedance) |
| 12 | GND | - | Ground wire, connected to the power reference ground |
| 13 | GND |
- |
Ground wire, connected to the power reference ground |
| 14 | GND |
- | Ground wire, connected to the power reference ground |
| 15 | GND |
- | Ground wire, connected to the power reference ground |
| 16 | XRES |
input |
External reset pin |
| 17 | ADC_IN |
input |
ADC input pin |
| 18 | AUX |
input/output |
Microcontroller GPIO |
| 19 | SETA |
input/output |
Microcontroller GPIO |
| 20 | UART_RX |
input/output |
UART RX pin |
| 21 | UART_TX |
input/output |
UART TX pin |
| 22 | SWD_DATA |
input/output |
SWD Data pin |
| 23 | SWD_CLK |
input/output |
SWD Clock pin |
| 24 | GND | - | Ground wire, connected to the power reference ground |
| 25 | SPI_MISO |
input/output |
SPI MISO test point, already internally connected, cannot be used as an external SPI |
| 26 | SPI_NSS |
input/output |
SPI NSS test point, already internally connected, cannot be used as an external SPI |
| 27 | SPI_MOSI |
input/output |
SPI MOSI test point, already internally connected, cannot be used as an external SPI |
| 28 | SPI_SCK |
input/output |
SPI SCK test point, already internally connected, cannot be used as an external SPI |
|
