Product Introduction

Rice-meat dumplings packing machine is a mechanical equipment for packing and packing Rice-meat dumplings, fish balls and quick frozen meatballs. It can automatically feed and weigh without manual operation. It is fully automated, fast and efficient.

The frozen fish ball packaging machine consists of five main parts: Z-type automatic feeding machine, 10 head electronic scale, work support platform, 420 vertical packaging machine host, and finished product conveyor. The working process of the machine is as follows: the operator pours the frozen Rice-meat dumplings and fish balls to be packed into the vibrating hopper of the Z-type feeding machine. The vibrating hopper conveys the balls to the tray of the feeding machine through the vibration of the motor, and then conveys them to the 10 head scales through the conveyor belt for weighing. The hoppers of the 10 electronic scales are combined for weighing. Once the weight reaches the set parameters, it will automatically be fed into the bag for sealing, printing the production date, finished product output and other links to complete the entire packaging process.

Packaging samples

We are no strangers to quick-frozen meat balls and fish balls in bags. Basically, we can see them in supermarkets. All the meat balls in bags we see in the refrigerator of supermarkets can be packed with this machine. The bags have two types: back sealed bags and prefabricated bags. The bag cuts have serrated cuts and flat cuts. We often see bag forms with back sealed serrated incisions. If you need a prefabricated bag type, you can use a bag packaging machine for packaging. If you need long strip packaging, you can use a pillow packaging machine for packaging. We have these types of machines here to meet your packaging needs. This machine is not only suitable for packaging quick frozen food such as Rice-meat dumplings, but also for packaging quick frozen dumplings, rice dumpling, chicken wings and other food.

Product parameters

workflow

1. 2. The material is poured into the storage hopper. 2. The Z-type elevator transports the material to the electronic combination scale. 3. The electronic combination scale is used for weighing and sorting. 4. The material is fed into the packaging machine for packaging. 5. The packaged finished product is transported to the sorting scale by the finished product conveyor. 6. The products with unqualified weight are selected

Performance characteristics

1. The machine is equipped with a fault display system, which can help troubleshoot and reduce the requirement for manual operation.

2. We can make back seals, corner inserts, four sided ironing, four sided sealing, standing bags, connecting bags, punching, etc. according to customer needs.

3. Adopting a PID independent temperature control system, the heating temperature is independently controlled with an accuracy of ± 1 ℃, ensuring a beautiful and smooth seal.

4. Using a dual die structure, the stepper servo motor controls the dual belt film pulling, ensuring smooth operation, high precision, and simple sealing correction operation.

5. The whole Rice-meat dumplings packaging machine is made of 304 stainless steel, and the material contact parts are made of food grade stainless steel, which meets the food safety standards.

6. Large screen electronic display control, intuitive interface information, easy to adjust parameters, can store up to 10 types of packaging parameters, more accurate variety replacement.

7. The PLC control system is used to control the operation of the whole machine, which is more stable and can adjust parameters such as bag length, bag width, and packaging speed without stopping the machine.

8. The full-automatic quick freezing fish ball meatball weighing and packaging machine automatically completes the measurement and weighing, bag making, blanking, date printing, sealing, and finished product output at one time.

Detail Display

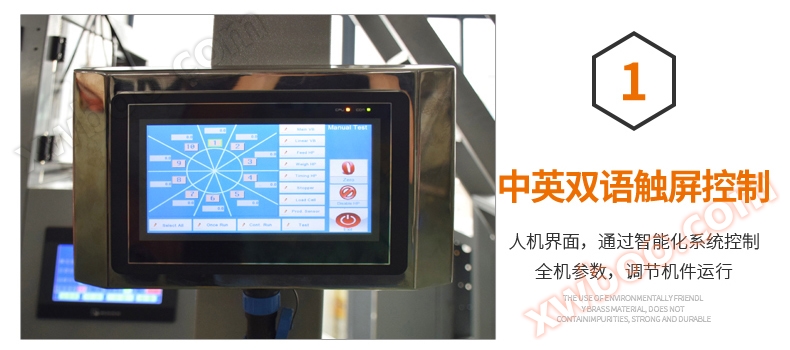

1. The Rice-meat dumplings packing machine uses both Chinese and English to control the machine operation. When setting the bag length and width, it can switch back and forth. It is controlled by the human-machine interface and controlled by the intelligent system to control the whole machine operation.

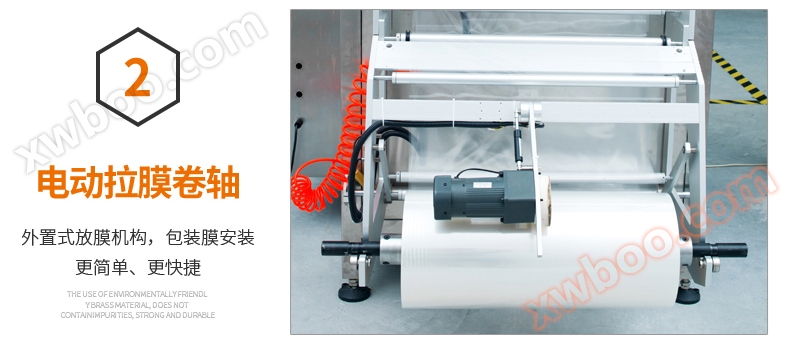

2. Electric mold roll: Adopting an external film release mechanism, the installation of packaging film is simpler and faster. The film roll shaft is fixed by inflating and expanding. After the film roll is used up, only the air pressure of the film roll shaft needs to be discharged to replace the film roll seal.

3. Electronic Control Components: All components of the entire machine operate using electronic control modules, and all controls are programmed through software, ensuring reliability and easy maintenance.

4. Dual cursor electric eye for shooting: High sensitivity cursor electric eye is used to accurately track the color blocks of the film roll, preventing the film roll from deviating.

5. Panasonic servo controller: The entire machine's running trajectory is controlled by Panasonic servo motors, and the operating system is more complete, accurately controlling the mold motor to make the mold more stable.

6. Traditional mechanized structure transmission is more reliable in operation, has strong motion coordination, and is easy to maintain.
