ROBOPAC, Italy

Automatic arm winding packaging machine

ROTOTECH CS/CW

Rototech is an ideal solution for fully automated packaging using stretch film.

The possibility of keeping the tray stationary and stabilizing the product by rotating the rotating arm are often necessary in many industrial realities. The rotary packaging machine series is used as a higher quality product for end packaging on production lines in related technical fields. This machine has excellent technical and device characteristics, making it an ideal choice for performing tray winding in a reliable and effective manner.

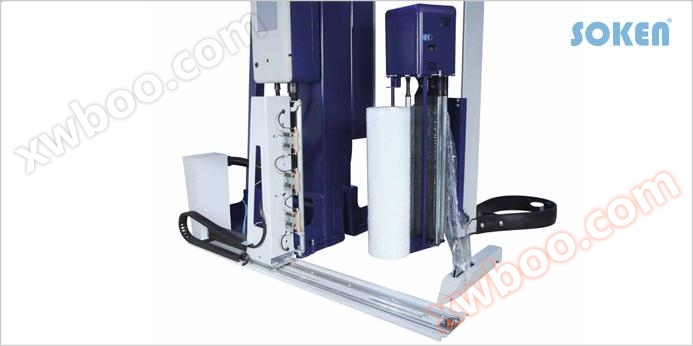

New mechanisms for film breakage and clamping with heat sealing or smoothing

The new feeding system on the aluminum alloy guide rail of the packaging film welding and coating device is controlled by a three-stage telescopic cylinder, which ensures that the last round of packaging film can be perfectly attached to the packaged product. The new aluminum alloy fixture controlled by the cylinder tightly holds the packaging film and does not slip during cutting. The packaging film is cut by hot wire, and the welding is realized by three welding plates with adjustable height and width.

color touch screen

The operation panel represents the brain of ROTOPLAT, which contains the heart of the machine and the technology of Robomo, that is, multi-level control ..

FR membrane frame
The FR film holder is equipped with a packaging film stretching device that can be controlled by an operation panel and driven by an electromagnetic brake.
The clutch of the brake is controlled by time to facilitate the connection between the packaging film and the bottom of the tray.
The electromagnetic powder brake ensures high-precision control of the brake and does not release pollutants

PDS membrane rack
A PDS membrane rack with a dual stretching system that can be controlled by a control cabinet, equipped with a stretching system set at a ratio of 250%,
Press the "Double Stretch" control button, and the film holder will activate the electromagnetic clutch located on the first stretching roller, automatically switching to variable stretching.

PVS film frame
The PVS film frame is a roller type PVS film frame with dual independent motors, and the stretching ratio can be adjusted from 150% to 400% on the control cabinet.
The patented electronic device controls the force of placing packaging film on the loading station and can adjust the force on the control cabinet.

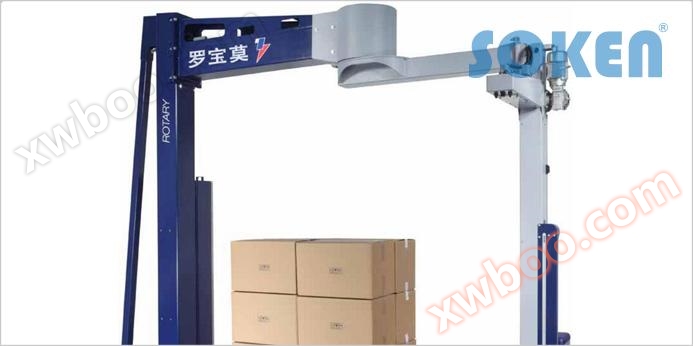

Scalable horizontal rotating arm

The frame of this high-performance horizontal rotating arm is a sturdy box structure made of 5mm thick steel plate. In this case, Luo Baomo went one step further and implemented an "adjustable" fixing method for the rotating arm with a bearing type toothed turntable. This allows the length of the horizontal rotating arm to be adjusted to its maximum, and users can use it for packaging products with dimensions of 1400 mm x 1400 mm. If you want to reduce the working size and ROTARY footprint, it is easy to adjust the length of the horizontal rotating arm to the minimum, which can also be used for packaging products with a maximum size of 1200 mm x 1200 mm.
