1、 Product Name:3D imaging tester

2、 Product model: GX-D654

III3D imaging testerProduct Features:

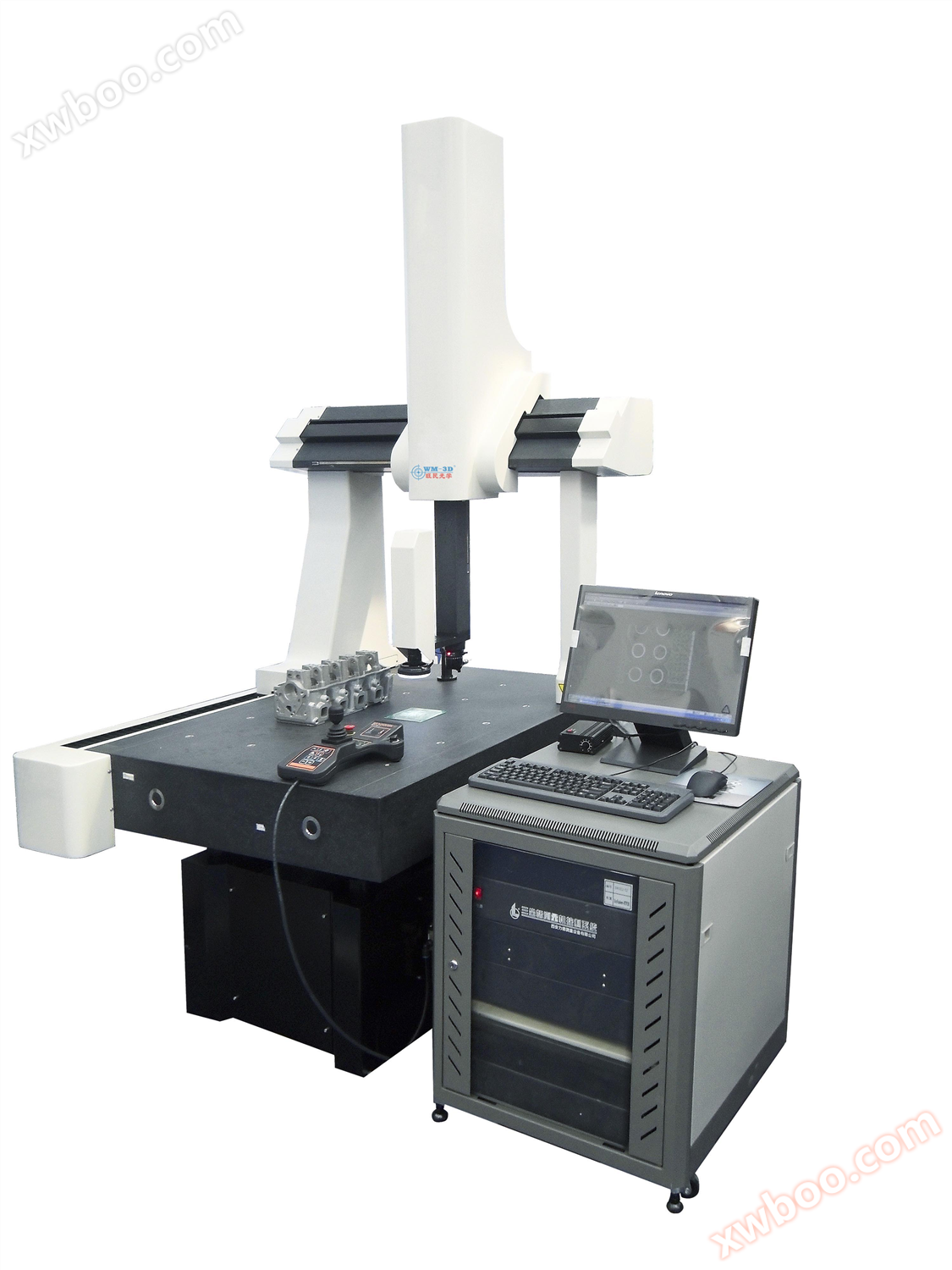

1.Three coordinate measuring and testing instrumentIncluding three coordinate measuring host, machine support, imported precision air filter, and imported length measurement system from abroad.

2. The gantry mobile structure and integrated granite workbench make it have the characteristics of strong bearing capacity, wide workpiece placement space, and convenient loading and unloading.

3. The Z-axis adopts a gravity balance device, which has high reliability and smoother movement.

4. The three-axis adopts high-performance synchronous belt transmission, which can not only achieve high motion speed to improve measurement efficiency, but also minimize transmission inertia to increase motion acceleration

5. A comprehensive safety protection device can lock the three-axis in a timely manner in case of accidents, avoiding larger accidents and protecting the safety of the machine.

6. The overall design conforms to the principles of ergonomics, is simple and convenient to use, and is easy to maintain and upkeep.

三次元影像仪

3D imaging testerTechnical Specifications:

Travel range (mm)

Dimensions (mm)

Instrument weight

(Kg)

Maximum load-bearing capacity

(Kg)

500

600

400

1020

946

2200

550

300

83D imaging testerTechnical parameters of measuring head:

length	50mm
diameter	30mm
install	handle
Installation of measuring rod	M3 thread
Trigger direction	5-way (± X ± Y-Z)
Repetitive accuracy in all directions	0.75 μm
Force measurement	12g
Zui Grand Pre itinerary	（X-Y） 5 μm
Zui Grand Overtravel	± 20˚（X-Y），5mm（Z）
lifespan	More than 1 million times

Basic measurement function:Measurement and evaluation of geometric elements: points, lines, planes, circles, ellipses, cylinders, cones, spheres, arcs, keyways, etc. Convenient operation, the operator only needs to decompose the measured workpiece into simple geometric elements to distinguish how many geometric elements make up the measured workpiece, and can quickly complete the measurement

Method for establishing coordinate system:

Featuring graphical prompts for easy and convenient operation. Support the commonly used RPS positioning method in the automotive inspection tool industry, support the best fitting method commonly used in surface measurement, and also support multiple coordinate system establishment methods such as multi-point fitting, three-point offset, two-point offset, etc

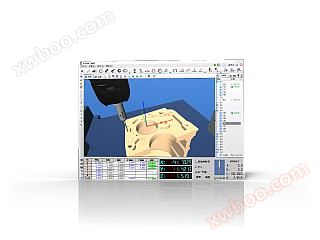

3D solid model display:

Enable the tested workpiece to be displayed intuitively. It can display the size and position of the measured workpiece and the three-dimensional graphics between the measured geometric elements on the computer screen, and can print the three-dimensional graphics and dimensions of the workpiece. Such as projection and mirror images, for user reference.

Self learning programming function:

The convenient self-learning function can automatically program the entire measurement process into a measurement program. The order of measurement is also the order of program measurement, and it can edit the entire program and perform offline simulation measurement
